STD60N series
- Positioning: open-loop
- Communication: EtherCAT
- Voltage: 20-80 VDC
- Amperage: 4-5.8A constant (5.6-8.2A max)
- Digital input: 4x (homing & limit switches)
- Digital output: 2x (alarm)
Details

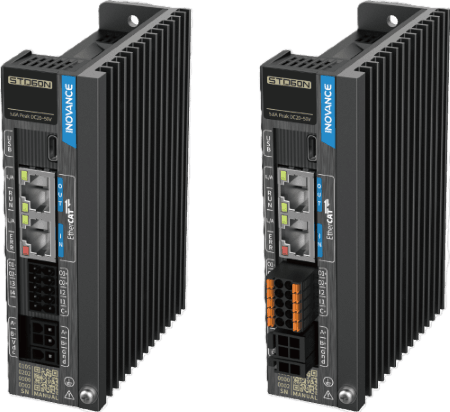

The STD60N series is an open-loop stepper motor driver with EtherCAT communication, ideal for open-loop positioning and speed control.
The driver is available in two versions:
- STD60N-55R6: 20-50V DC, 4A constant / 5.6A max
- STD60N-88R2: 20-80V DC, 5.8A constant / 8.2A max
Thanks to this wide voltage and current range, the STD60N is suitable for almost any stepper motor size. Additionally, the driver is equipped with four digital inputs for homing and limit switches, and two digital outputs for alarm notifications.
Configuration is simple via a USB-C connection, allowing for quick and user-friendly setup.
