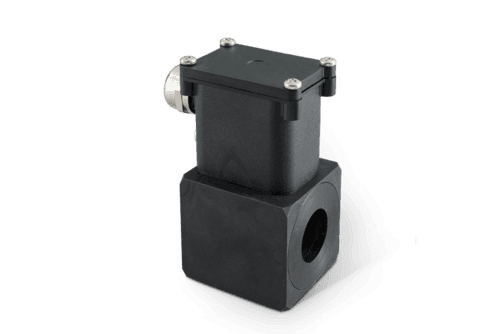

Solenoid body with explosion protection according to ATEX and IECEx type F MM E

Features:

• Electrical connection via terminal box
• Protection class: IP65
• Explosion protection:
  Ex II 2G Ex eb mb IIC T6/T4 Gb
  Ex II 2G Ex tb IIIC T80°C/T130°C Db

Ambient temperature:

• -30°C … +40°C
• -30°C … +50°C
• -30°C … +60°C
• -30°C … +80°C (on request)

Options:

• Protection class IP67
• Threaded versions for customer-supplied cable glands
• Alternative cable glands
• Sizes (square): 35 mm, 45 mm, 60 mm
