Electromagnets & Solenoid Valves
Electromagnets Tubular solenoids Single-acting solenoid type R16x16 and RP16x16
Electromagnets Tubular solenoids Single-acting solenoid type R16x16 and RP16x16

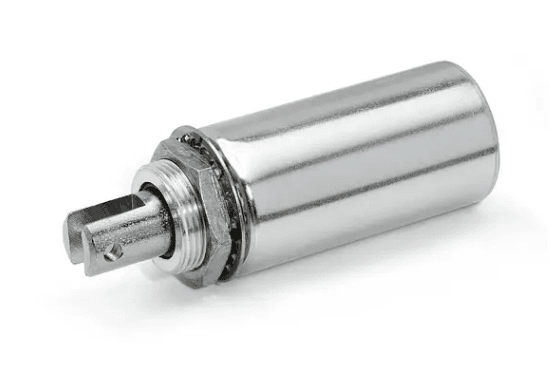

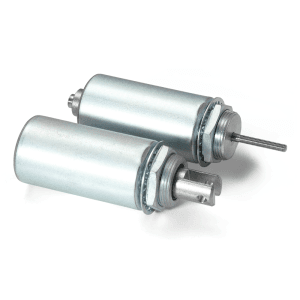

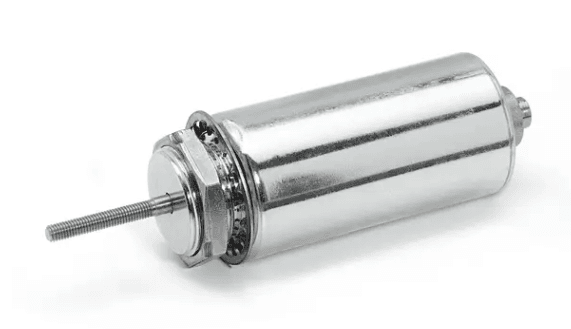

Single-acting solenoid type R16x16 and RP16x16
- Size Ø 25mm Pull R16x16 and Push RTP16x16 types
- Electrical connection via flying leads
- Mounting via four or six screw holes
- Protection class: IP00
- Voltage type: DC
- External spring return option
- Special adaptations on request
The DC single-acting solenoid type R16x16/RP16x16 is a tubular design.
Details
- The DC single-acting solenoid in a pulling R16x16 and pushing RP16x16 version..
- Compact design pull/push version
- Stroke: 25 mm
- Diameter: 25mm
- Magnetic force (N): 0-46 N
