Single-acting solenoid type GFC
- Nearly horizontal force versus stroke characteristic
- Pull and push types
- Electrical connection via flat plug A 6, 3×0.8 DIN 46244
- Mounting via two respectively three screw holes
- Protection class: IP00
- Voltage type: direct current, DC
- Spring return option
- Shot bolt version available
- Clevis connection version available

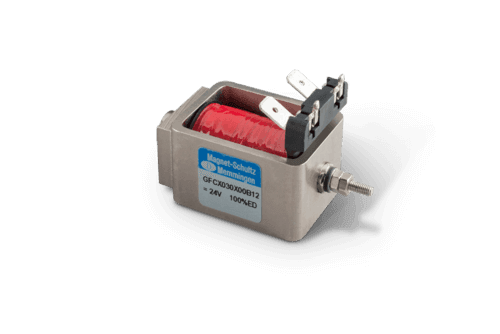

The DC single-acting solenoid type G FC is an open frame design.
Details
The DC single-acting solenoid type G FC is a simplified alternative to the GTA and GTCA devices for applications requiring a low protection class and low cost. The design, a one-piece frame, reinforced in the area of the armature bearing with a soldered plate, is just as robust as the other types.
Details:
- Dimensions (Ø): 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm
- Stroke: 4 mm to 12 mm
- Magnetic force (N): 2.7 N – 125 N
