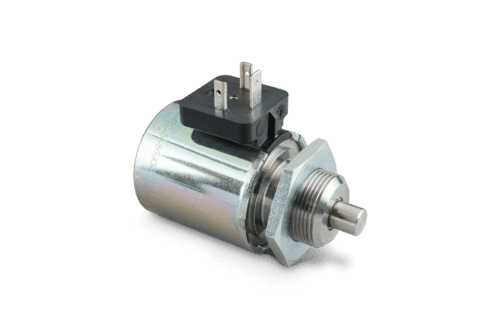

Shot bolt lock unit Type G SC X … B01
The G SC X B01 shot bolt lock unit is the result of consistent further development of the type G SC X in terms of maximum performance and cost efficiency.
Important differences relative to the G SC X version are:
- The solenoid body is permanently fixed to the solenoid drive: rotation or replacement of the coil is not possible.
- The protection class for the entire device is IP40, as there is no seal on the armature plunger. Sealing and higher protection classes available on request.
- The device is equipped with an earth connection, allowing nominal voltages up to 250 VDC.
- The compact design allows high permissible lateral forces.
- There are currently no explosion-proof versions planned.
Details
- Pull or push types
- Versions with end position detection via limit switch
- Function: single-acting solenoid with integrated return spring
- Electrical connection via plug connection according to DIN EN 175301-803
- Mounting via central thread
- Protection class: IP40
- Voltage type: direct current, DC
- Options: further electrical connections
- Dimensions (Ø): 37 mm, 45 mm and 63 mm
- Stroke: 8 mm, 10 mm, 12 mm
- Permissible lateral force in normal position: 750 N – 3000 N
- Magnetic force (N): 8.5 N – 33 N
