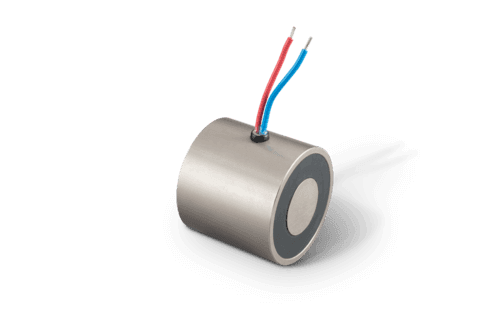

Permanent electric holding magnets type GM P
- Increasing magnetic force-air gap characteristic
- Electrical connection via two-pole terminal or flying leads
- Mounting via threaded holes on the rear
- Protection class: IP00 for flying leads, IP20 for two-pole terminals
- Voltage type: DC
- Galvanised pole face
Details
The G MP holding magnet operates according to the closed circuit principle. It has an integrated permanent magnet and therefore continuously attracts ferromagnetic counterparts.
When the nominal voltage is applied with the correct polarity, the magnetic field of the permanent magnet is compensated via a built-in coil so that only a small residual holding force remains active. The fixed counterpart is then released.
Details:
- Size (Ø): 25 mm, 30 mm, 35 mm, 50 mm
- Holding force: 110 N– 800 N
