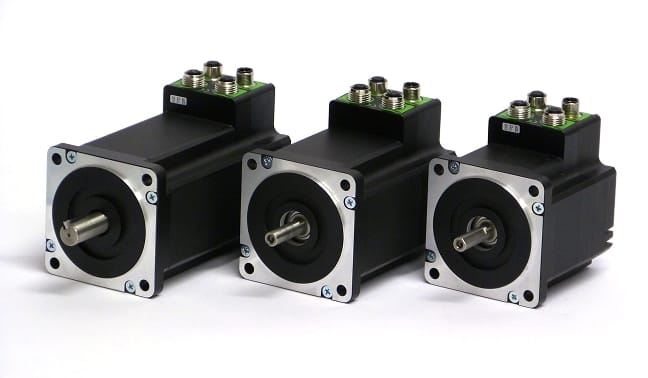

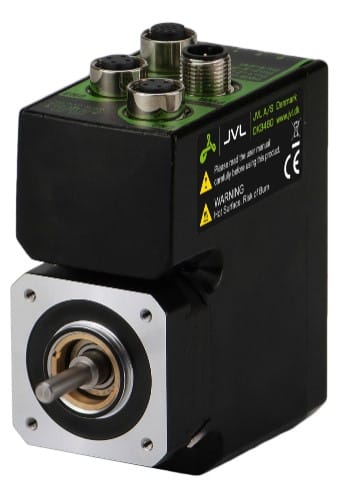

MIS series (integrated stepper motors)
Protocol flexibility: easy switching between Ethernet protocols via MacTalk® software.
ePLC™: fast <1 ms response times and up to 8 I/O points.
Speed range: 0-3000rpm
Size: Nema17 – Nema34
Encoder: incremental, optional absolute multi-turn encoders
Voltage: 24VDC-72VDC
IP rating: IP54, optional IP65
Certification: CE & UL
Details
The JVL ServoStep® series offers integrated stepper motors with advanced functionalities such as a built-in PLC (ePLC™), absolute multi-turn encoder, and support for various Ethernet protocols (Profinet, EtherCAT, Modbus TCP/UDP and more). These motors combine all the electronics in a compact metal housing, which saves space in control cabinets and ensures excellent EMC safety.
The JVL motors are reliable and efficient, designed for demanding sectors such as machine construction, aerospace and automotive. The integrated solution minimises cabling, increases system reliability and offers extensive connectivity for modern automation needs.
