DWM series

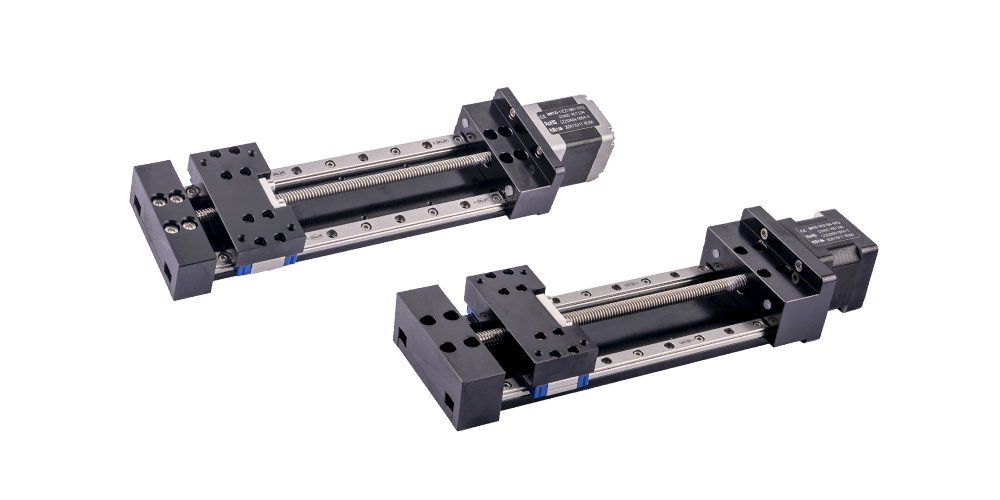

The DWM series linear modules from DINGS’ are designed for high precision and heavy loads, thanks to the integration of dual guide rails. The modules are available in five sizes (20 mm, 28 mm, 35 mm, 42 mm, and 57 mm) and offer stroke lengths from 20 mm to 600 mm, depending on the size variant.They utilise stepper motors with a standard step angle of 1.8° or 0.9°, and offer resolutions ranging from 0.0015 mm to 0.127 mm per step.

Options such as encoders, brakes, M12 connectors, and the IP54 seal enhance functionality and durability. The modules are made from high-quality materials such as hardened steel and aluminium to help ensure a long service life and high reliability. They are suitable for demanding industrial applications, including robotics and automation, where accuracy and load capacity are important.
