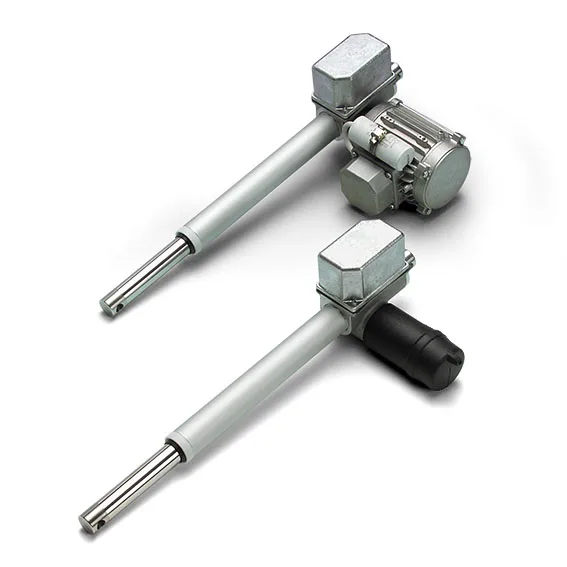

Electro-cylinders Electric cylinders with Acme thread and AC motor CLA and CLB Linearmech Series
CLA and CLB Linearmech Series
Linearmech electromechanical linear actuators are user-friendly and reliable products. They are an excellent and convenient alternative to pneumatic cylinders, recommended for applications with medium to low speeds, an intermittent duty cycle and a self-locking requirement when load is applied, both in tension and compression.
The linear actuators from the LINEARMECH CLA and CLB series feature a rectangular design, with an AC or DC motor always included. The housing is made of highly resistant aluminium alloy. Input drive with a worm gear.
Details
Linear actuators with ACME thread from the CLA series:
6 standard sizes available
Acme thread from Ø 13.5 mm to Ø 18 mm
Linear speed up to 100 mm/s
Load capacity push-pull up to 10,000 N
Electric motors available: AC 3-phase or single phase motor, DC motors (12V, 24V)
Long-life lubrication, maintenance-free
Linear actuators with ball screw from the CLB series:
2 standard sizes available
Ball screw Ø 14
Linear speed up to 125 mm/s
Load capacity push-pull up to 7,000 N
Available electric motors: AC 3-phase or single phase motor, DC motors (12V, 24V)
Long-life lubrication, maintenance-free
Available accessories (*):
Electric limit switches, cam operation, protected by a sealed cover (IP65),
Stainless steel push rod
Rear bracket
Safety coupling
Brake motor
