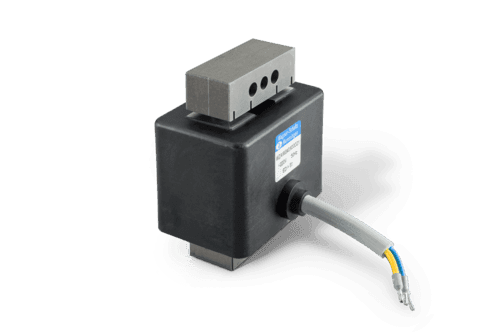

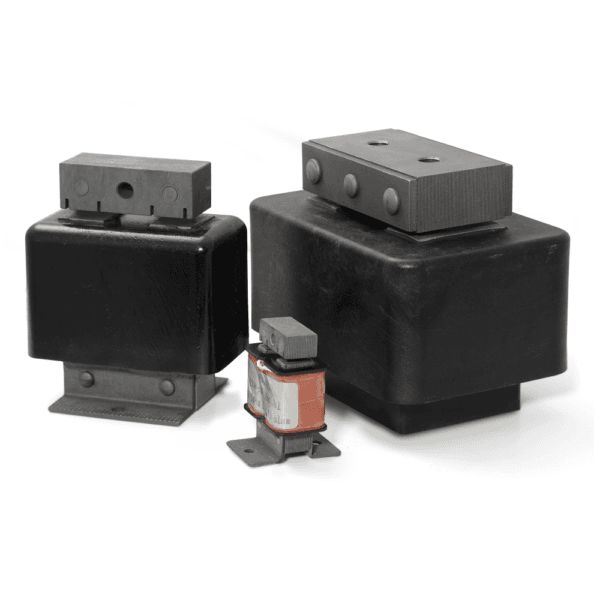

AC vibrating magnets type W ZA W, Y ZA W, Y ZU W
Vibrating magnets, which comprise a solenoid body and an armature, are installed as electromagnetic drives in a customer’s vibrating application.
The armature is held in place by a suitable spring-mass system so that there is always a nominal air gap.
When connected to the alternating current supply, the alternating voltage curve causes the system to generate vibration. If the vibrating magnet is directly connected to an AC grid, the system vibrates at twice the grid frequency. When using a half-wave rectifier, the system vibrates at the grid frequency.
Details
Details
- For direct connection to the AC grid or via a half-wave rectifier
- Encapsulated version
- Electrical connection via free flexible leads
- Mounting via tapped holes or connection bracket
- Protection class: IP00
- Voltage type: alternating current, AC
- Sizes: 040, 060, 080, 090, 120
- Peak force: 18 N – 1450 N
